Bioburden Testing in the Pharmaceutical Industry

Bioburden testing is a critical quality control procedure used to measure the number of viable microorganisms present on pharmaceutical products, raw materials, and packaging components before sterilization. It plays an essential role in ensuring the microbial cleanliness of products, particularly those intended to be sterile.

Bioburden levels must be carefully controlled, monitored, and justified as part of the overall product quality risk management approach. Elevated or unexpected bioburden can compromise product safety, affect the efficacy of sterilization processes, and signal potential weaknesses in upstream controls such as water systems, environmental monitoring, or cleaning procedures.

This article provides a comprehensive overview of bioburden testing methods, regulatory expectations, and practical considerations for implementation in pharmaceutical quality systems.

Key Concepts and Definitions

A solid understanding of bioburden testing begins with clarity around fundamental microbiological and regulatory terms. These concepts help define the scope of testing, interpretation of results, and relevance to overall contamination control strategies.

Bioburden

Bioburden refers to the population of viable microorganisms present on a product, component, raw material, or environmental surface before undergoing a sterilization process. It is typically expressed as colony-forming units (CFU) per unit (e.g., per mL, gram, or device).

Bioburden levels reflect the effectiveness of upstream contamination control, including cleaning, sanitization, personnel hygiene, and environmental conditions. The bioburden must be consistently controlled to ensure that the chosen sterilization method can reliably achieve the required sterility assurance level (SAL).

Microbial Enumeration vs. Sterility Testing

Microbial Enumeration

This testing determines the quantity of viable aerobic bacteria, yeast, and mold present in a sample. It does not differentiate between specific species unless followed by identification or confirmation tests. Microbial enumeration is part of routine monitoring for non-sterile and in-process materials.

Sterility Testing

Unlike enumeration, sterility testing is a qualitative method used to detect the presence or absence of viable microorganisms in a product intended to be sterile. It is typically performed post-sterilization and is more stringent in sample handling, incubation, and interpretive criteria.

CFU: Colony-Forming Unit

CFU represents one viable microorganism or a group of cells that are capable of forming a visible colony on solid agar. The count may not directly represent the total number of individual organisms, especially when microbial clumping or biofilms are present.

CFUs are reported as numeric values (e.g., 15 CFU/g), and trends in CFU counts are used to assess microbial cleanliness over time.

TNTC: Too Numerous to Count

TNTC is used when microbial growth on a plate is so extensive that individual colonies cannot be distinguished or accurately counted. This typically occurs when counts exceed 300 CFU per plate, though the threshold may vary by method or protocol.

Objectionable Microorganisms

Objectionable microorganisms are those that may pose a risk to product quality or patient safety, depending on the product’s route of administration, formulation, or intended use. Their presence, even in small numbers, may lead to batch rejection or additional testing.

Testing for objectionable organisms is typically covered under USP <62> and should be product-specific.

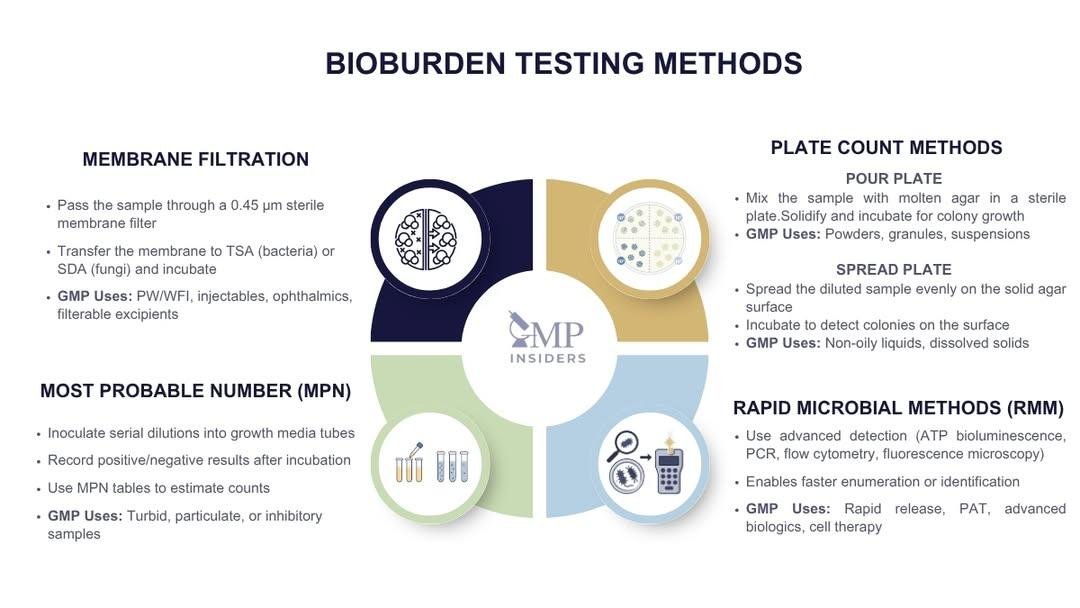

Bioburden Testing Methods

The selection of an appropriate bioburden testing method depends on the product’s physical characteristics, the expected microbial load, and regulatory or pharmacopeial requirements. Proper method selection ensures accurate enumeration, supports contamination control, and feeds into critical activities like sterilization validation and trend analysis.

Membrane Filtration Method

The membrane filtration method is considered the most reliable approach for testing large-volume samples with low expected bioburden, particularly liquids that are clear and filterable.

How it works

A defined volume of the sample is passed through a sterile membrane filter (usually 0.45 µm pore size), which retains microorganisms. The membrane is then transferred to agar media, typically TSA (Tryptic Soy Agar) for bacteria or SDA (Sabouraud Dextrose Agar) for fungi, and incubated under suitable temperature and time conditions.

Applications in GMP

• Water systems (Purified Water, Water for Injection)
• Clean-in-place (CIP) and rinse solutions
• Non-oily injectable solutions and ophthalmics
• Filterable raw materials or excipients

Advantages

• Enables testing of large volumes (100 mL or more)
• High sensitivity: It can detect as few as 1 CFU
• Supports quantitative recovery for low-burden samples
• Compliant with ISO 11737 and USP <61> requirements

Limitations

• Not suitable for viscous, oily, or particulate-laden samples
• Potential for membrane clogging or loss of viability due to filtration stress
• Requires careful aseptic technique to avoid contamination

Membrane filtration is a compendial method and is frequently used in sterile pharmaceutical and biopharmaceutical environments.

Plate Count Methods

Plate count methods are simple, direct techniques used for solid or liquid samples that are not suitable for filtration. These methods are also used during method suitability testing and validation.

Pour Plate Method

In this technique, the test sample (usually 1 mL) is placed in a sterile petri dish, and molten agar is poured over it. The sample and agar are mixed gently and allowed to solidify before incubation.

Use case examples

• Powders, granules, or suspensions
• Nutritional supplements or botanical extracts
• Where dilution is required to reduce viscosity

Advantages

• Allows bacteria to grow within the agar matrix, improving visibility of small colonies
• Better for heat-stable organisms and low-volume testing
• Can reduce spreading and surface contamination effects

Drawbacks

• Incompatible with heat-sensitive microorganisms
• May result in uneven distribution of organisms
• Gas-forming colonies can disturb agar integrity

Spread Plate Method

A defined volume of sample or dilution is spread evenly across the surface of solidified agar using a sterile spreader.

Common uses

• Plate counts of non-oily liquids and dissolved solids
• Test articles with known microbial inhibition potential
• Detection of slow-growing or surface-preferring organisms

Advantages

• Gentler on stressed microorganisms
• Heat-sensitive organisms are not exposed to molten agar
• Useful for enumerating distinct colonies and morphologies

Drawbacks

• Limited to 0.1–0.2 mL volumes per plate
• Uneven spreading or colony merging can affect accuracy
• Less sensitive than membrane filtration for very low counts

Plate count methods are widely used in quality control labs for non-sterile dosage forms and during method validation for new products.

Most Probable Number (MPN)

MPN is a statistical approach that estimates microbial counts based on the pattern of positive and negative growth in a series of dilution tubes.

How it works

Serial dilutions of a test sample are inoculated into multiple tubes containing growth media. After incubation, the number of tubes showing microbial growth is recorded and used to determine the most probable number of organisms present in the original sample using statistical tables.

Applications in pharma

• Products with high turbidity or particulate matter
• Samples that inhibit colony formation on solid media
• Certain water or buffer matrices with background interference

Advantages

• Useful when colony counting is not feasible
• Provides quantitative estimates with confidence limits
• Works well for complex matrices like emulsions or semi-solids

Limitations

• Labor-intensive and time-consuming
• Less precise than direct counting
• Requires careful dilution and media preparation

Although not frequently used in routine GMP bioburden testing, MPN is valuable in method development or troubleshooting complex matrices.

Rapid Microbial Methods (RMM)

Rapid microbial methods use alternative technologies to detect, enumerate, or characterize microorganisms faster than conventional culture-based techniques.

Common technologies

• ATP bioluminescence: Measures microbial metabolic activity
• Flow cytometry: Detects and counts cells using light scattering and fluorescence
• PCR and DNA-based methods: Amplify microbial DNA for identification
• Fluorescence microscopy: Visualizes viable cells using viability stains

Advantages

• Drastically reduces time-to-result (from days to hours)
• Enables real-time or near-real-time decision-making
• Supports rapid release testing and PAT (Process Analytical Technology)
• High sensitivity and often automated for high-throughput environments

Challenges

• Validation must demonstrate equivalency or superiority to compendial methods
• Higher initial costs and complexity
• Regulatory acceptance may require extensive documentation and justification

SEE ALSO: Difference Between Validation and Verification of Analytical Methods

RMMs are increasingly integrated into modern QC labs, particularly in sterile drug manufacturing, cell and gene therapy, and advanced biologics.

Sample Preparation and Extraction Techniques

Proper sample preparation is fundamental to obtaining accurate and reproducible bioburden results. The way a sample is collected, handled, and processed can significantly influence the recovery of viable microorganisms. Techniques must be selected based on the product’s physical form, microbial load expectations, and the testing method in use.

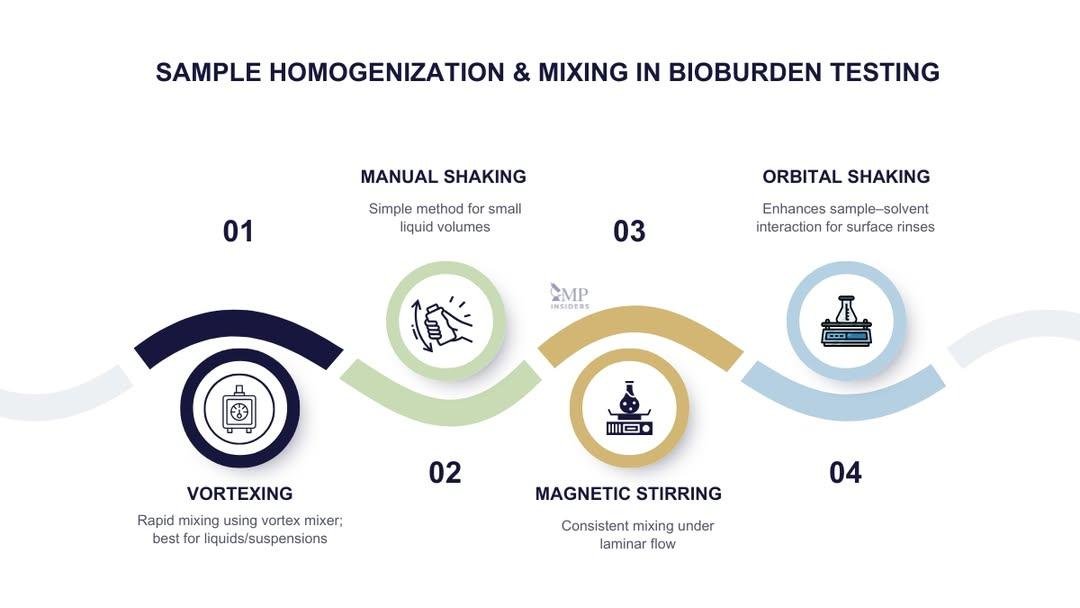

Sample Homogenization and Mixing

Before testing, samples, especially solid or non-homogeneous materials, must be evenly mixed to ensure a representative distribution of microorganisms.

Common techniques

• Vortexing: Rapid mixing using a vortex mixer, ideal for liquids or suspensions
• Manual shaking: Simple and effective for small-volume liquid samples
• Magnetic stirring: Useful when working under laminar flow conditions
• Orbital shaking: Helps with sample-solvent interaction for surface rinses

Inconsistent mixing can lead to underestimation or overestimation of bioburden and reduce test reproducibility.

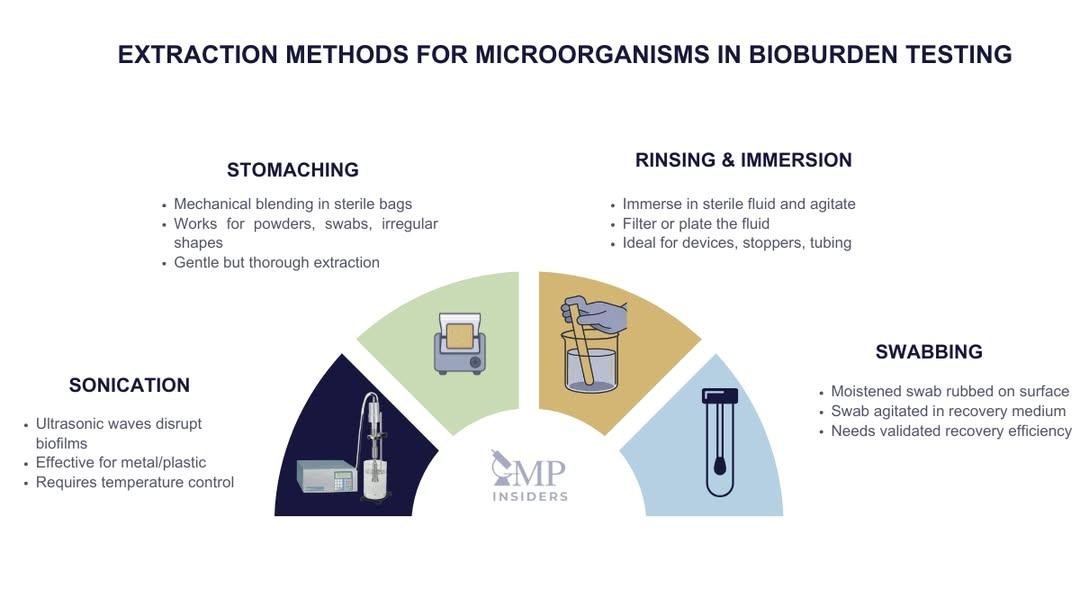

Extraction of Microorganisms from Complex Matrices

When testing solid or semi-solid materials, microorganisms must be dislodged from the matrix into a suitable extraction fluid for enumeration. This process must be validated to demonstrate recovery efficiency.

Sonication

Uses ultrasonic waves to disrupt surface interactions and biofilms.

• Effective for dislodging microorganisms from metal or plastic components
• May generate heat; requires temperature control to avoid viability loss

Stomaching

A mechanical blending technique where samples are placed in sterile bags and agitated.

• Common in food and environmental microbiology
• Provides gentle but thorough extraction
• Useful for powders, swabs, and irregularly shaped materials

Rinsing and Immersion

Suitable for non-porous devices and packaging materials.

• The test article is immersed in sterile fluid and agitated
• The fluid is then filtered or plated for enumeration
• Often used for medical devices, stoppers, or tubes

Swabbing

Used when immersion is impractical or for targeted surface testing.

• Swabs are moistened with a diluent and rubbed over the surface
• The swab is then agitated in recovery medium
• Requires method validation for surface recovery efficiency

Each extraction method must be assessed during method suitability testing to ensure that microbial recovery is consistent and reproducible for the sample type.

Neutralization of Antimicrobial Properties

Many pharmaceutical products have inherent antimicrobial activity (e.g., preservatives, alcohols, surfactants). Without proper neutralization, these substances may inhibit microbial growth and lead to false-negative results.

Strategies

• Use of validated neutralizers (e.g., polysorbate 80, lecithin, sodium thiosulfate)
• Incorporation of dilution techniques to reduce inhibitor concentration
• Pre-incubation in neutralizing broth before filtration or plating
• Inclusion of spiked controls to demonstrate recovery in the presence of product

Neutralization should be validated as part of the method suitability study, as described in USP <61> and <62>.

Sample Volume and Dilution

The volume of the test sample must be appropriate for the method used and for the expected microbial load.

Considerations

• Use smaller volumes for high-burden materials to avoid TNTC results
• Larger volumes improve sensitivity in low-burden samples (especially with filtration)
• Serial dilutions may be necessary to generate countable plates (30–300 CFU)
• Diluents should be sterile, non-inhibitory, and compatible with the product

Dilution and plating techniques must be standardized and performed aseptically to maintain method accuracy and minimize contamination.

Controls and Recovery Checks

In addition to the test sample, control samples must be used to verify the reliability of the testing process.

Typical controls include:

• Negative controls: Confirm that diluents, media, and equipment are sterile
• Positive controls: Known organisms added to assess recovery (e.g., method suitability)
• Inhibition controls: Product + spiked organisms to evaluate antimicrobial activity
• Blank swabs or rinse fluid: Evaluate contamination introduced during extraction

These controls help identify issues with method performance, sterility breaches, or product interference early in the testing process.

Method Validation for Bioburden Testing

Bioburden testing methods must be validated to ensure they deliver accurate and reliable results. Validation confirms that the method can recover microorganisms effectively, is not affected by antimicrobial properties in the product, and meets regulatory expectations from authorities like the FDA, EMA, and pharmacopeias (e.g., USP <61>, <62>, ISO 11737-1).

At a minimum, validation should address recovery efficiency, method suitability, neutralization of inhibitory substances, and method precision. The process includes spiking the product with known microorganisms, verifying recovery under realistic conditions, and confirming the method’s reproducibility and robustness.

Method validation is required during initial implementation and must be re-evaluated when changes occur in the product, equipment, or testing strategy. All validation activities must be documented in GMP-compliant reports and approved by Quality Assurance.

Setting and Justifying Bioburden Limits

Bioburden limits define the acceptable microbial load present in a sample before sterilization or at specified process stages. These limits are essential for ensuring that microbial contamination remains under control and that the sterilization or preservation method remains effective under worst-case conditions.

Establishing scientifically sound and risk-based bioburden limits is a regulatory expectation in both sterile and non-sterile pharmaceutical manufacturing.

Importance of Bioburden Limits

Bioburden limits serve as key control points in contamination control strategies and play a critical role in:

• Validating sterilization processes by confirming that the initial microbial load does not exceed the sterilization capacity
• Supporting real-time decision-making for product release and process control
• Acting as indicators for the effectiveness of upstream controls such as cleaning, water quality, and environmental monitoring
• Providing early signals of contamination or process drift before it affects product quality

They are not only operational thresholds but also part of the overall microbial quality profile that regulators evaluate during inspections.

Types of Limits

Bioburden control programs typically include two categories of limits:

Alert Limits

These are pre-defined microbial levels that, when exceeded, prompt increased scrutiny and internal review. Exceeding an alert limit does not automatically constitute a deviation but may indicate a potential drift from the normal operating range.

Action Limits

These represent a threshold beyond which the result is no longer acceptable. Exceeding an action limit requires formal investigation, documentation of a deviation or non-conformance, and implementation of corrective and preventive actions (CAPA).

In sterile manufacturing, action limits are usually more stringent and may be linked to batch rejection or withholding release.

Both limits must be documented in the quality system and referenced in batch manufacturing records, test methods, and trend analysis reports.

Risk-Based Limit Setting

A documented risk assessment process should drive the establishment of bioburden limits. Factors to consider include:

Product and Process Characteristics

• Whether the product is sterile or non-sterile
• Route of administration (e.g., parenteral, ophthalmic, oral)
• Product formulation and susceptibility to microbial growth
• Microbial resistance of the primary packaging system
• Environmental classification of the processing area

Historical and Validation Data

• Results from method validation, including recovery efficiency and detection limits
• Data from media fills, environmental monitoring, and water system trends
• Baseline microbial load observed during development or initial production runs

Trending and Data Review

Once limits are established, ongoing monitoring and trend analysis are essential to verify that the process remains under control.

• Routine trending: Track CFU counts per sample type, per location, and per time point
• Control charts: Use statistical tools (e.g., X-bar or moving average charts) to monitor shifts and trends
• Escalation criteria: Define when recurring alert-level results require investigation, even without reaching the action limit
• Trend-based adjustments: Periodic reviews (e.g., during Annual Product Quality Reviews or Quality Management Reviews) should assess whether limits remain appropriate

This proactive approach allows for early detection of contamination risks and supports continuous improvement in contamination control strategies.

Bioburden Monitoring in Pharmaceutical Processes

Bioburden monitoring plays a vital role in contamination control by assessing microbial load at critical manufacturing stages. This includes testing raw materials, water systems, in-process samples, equipment, and packaging components. Each point carries distinct contamination risks, and sampling must be planned accordingly.

Monitoring strategies should be risk-based, considering process criticality and contamination history. Routine and event-based sampling are both essential, with clear definitions for sample locations, volumes, aseptic handling, and incubation conditions. Bioburden data must be trended over time to detect emerging issues, even when results stay within alert or action limits.

Importantly, bioburden monitoring should align with cleanroom environmental data. Correlating the two provides a comprehensive picture of microbial control and helps demonstrate GMP compliance.

Regulatory Framework and Guidelines

Bioburden testing is not only a scientific requirement but also a regulatory expectation. Various international standards and pharmacopeial chapters guide how to perform, validate, and trend bioburden results in a way that supports product quality and GMP compliance. Below is an overview of the most relevant frameworks.

ISO 11737-1: Determination of Bioburden

This standard outlines the procedures for determining the population of viable microorganisms on a product, component, or packaging material. It includes information on:

• Sample selection and preparation
• Recovery methods such as membrane filtration and direct plating
• Calculation of microbial counts and interpretation of results
• Handling of results that are too numerous to count (TNTC)

Environmental monitoring also provides guidance on how to justify sampling plans and define bioburden limits based on product type, risk, and historical data.

ISO 11737-2: Tests of Sterility Performed in Validation

This part of the series focuses on sterility testing as part of sterilization validation. Although not directly used for routine bioburden testing, it is essential for validating sterilization cycles and demonstrating that the bioburden level does not exceed the capacity of the sterilization method.

USP <61>: Microbial Enumeration Tests

This chapter defines the procedures for total aerobic microbial count (TAMC) and total yeast and mold count (TYMC). It includes:

• Media preparation and incubation conditions
• Neutralization and dilution techniques
• Acceptance criteria for non-sterile pharmaceutical products

USP <61> is applicable to raw materials, excipients, finished products, and in-process samples.

USP <62>: Tests for Specified Microorganisms

While USP <61> covers general enumeration, USP <62> focuses on the detection of specific objectionable organisms such as:

• Escherichia coli
• Salmonella species
• Staphylococcus aureus
• Pseudomonas aeruginosa
• Candida albicans

These organisms are tested based on product type and route of administration, in line with risk-based microbiological quality assessments.

EU GMP Annex 1

Annex 1 of the EU GMP Guidelines outlines the requirements for manufacturing sterile medicinal products. The revision strengthened the role of contamination control strategies (CCS) and placed more emphasis on environmental and bioburden monitoring throughout the manufacturing lifecycle.

Key expectations include:

• Risk-based justification of bioburden limits
• Sampling frequency linked to process understanding
• Trending of results as part of a formal CCS
• Bioburden monitoring of utilities, equipment, and packaging prior to sterilization

FAQ
