Maintaining controlled environments is critical to ensuring product quality, patient safety, and regulatory compliance. Airborne contamination, whether from dust, microorganisms, or chemical particulates, poses a significant risk to both sterile and non-sterile products.
High-Efficiency Particulate Air (HEPA) filters play a central role in protecting these environments. By effectively removing airborne particles, HEPA filters help maintain the cleanroom classifications.Â
The latest revision of Annex 1 emphasizes the importance of a holistic contamination control strategy (CCS), with special attention to air filtration systems. HEPA filters, when properly selected, installed, tested, and maintained, form a critical defense line against contamination risks in pharmaceutical production facilities.
In this article, we will explore the mechanism and construction of HEPA filters, the different types used in pharmaceutical settings, their qualification requirements, and the key considerations for maintaining compliance with GMP standards.
What Are HEPA Filters?
High-Efficiency Particulate Air (HEPA) filters are specialized filters capable of removing at least 99.97% of airborne particles measuring 0.3 microns in diameter, the most penetrating particle size (MPPS).Â
This high efficiency is achieved through a combination of filtration mechanisms, including interception, impaction, and diffusion, which allow the capture of a wide range of particle sizes from dust to microorganisms.
HEPA filters consist of a dense network of fibers, typically made from glass microfiber, arranged to create a maze-like structure that traps particles as air passes through. Unlike standard air filters, HEPA filters are engineered to maintain airflow while achieving extremely high particle retention, making them essential for environments requiring controlled contamination levels.
HEPA filters are integral to cleanroom design and contamination control strategies, ensuring that airborne particles do not compromise the quality or sterility of products.
Mechanism of HEPA Filters
HEPA filters function through a combination of physical mechanisms that allow them to capture particles of varying sizes efficiently. Unlike a simple mesh or sieve that blocks only large particles, HEPA filters leverage complex airflow interactions with the fiber matrix to trap contaminants ranging from visible dust to submicron-sized microorganisms and aerosols.
The primary mechanisms of particle capture in HEPA filters are:
Interception: Capturing Medium-Sized Particles
As air flows through the filter, particles that are carried by the airstream may come sufficiently close to a fiber and adhere to it.
Interception primarily affects particles in the 0.1 to 1-micron range, where inertia is not strong enough to cause impaction, but proximity to fibers is sufficient for capture. This mechanism is highly effective for bacterial cells, fungal spores, and dust particles.
Impaction: Filtering Larger Particulates
Particles larger than about 0.5 microns have enough inertia that they cannot follow the curved pathways of the airflow around the fibers. Instead, these particles deviate from the airstream and impact directly onto a fiber surface.
Impaction is particularly important for capturing larger particles such as dust aggregates, pollen, and clumped microorganisms. In cleanroom environments, this mechanism ensures the removal of viable and non-viable larger particulates.
Diffusion: Capturing Ultrafine Particles
Smaller particles, particularly those less than 0.1 microns, do not move predictably with the airflow because of their random Brownian motion.
Instead of traveling in straight lines, these ultra-fine particles frequently collide with air molecules, resulting in a random, zigzagging movement. This chaotic motion increases the probability that a particle will collide with a fiber and become captured. Diffusion is the dominant capture mechanism for viral particles and very fine aerosols.
Sieving: Blocking Oversized Contaminants
Although not the central operating principle in HEPA filtration, sieving occurs when a particle is simply too large to pass through the gaps between fibers. Particles larger than the pore size created by the fiber matrix are mechanically blocked and retained at the filter’s surface.
This effect supports the other mechanisms but is secondary in HEPA filters, where the fiber spacing is designed to optimize interception, impaction, and diffusion, not simple sieving.
| Mechanism | Particle Size Range | How it Works | Example Captured Particles |
|---|---|---|---|
| Interception | 0.1 – 1 micron | Particle follows the airflow and sticks to fiber | Bacterial cells, fungal spores |
| Impaction | > 0.5 microns | Particle deviates from airflow and crashes into fiber | Dust, pollen, clumped microbes |
| Diffusion | < 0.1 micron | Particle undergoes Brownian motion and contacts fiber | Viruses, fine aerosols |
| Sieving | Larger than fiber gaps | Particle is too large to pass through filter matrix | Larger dust particles |
Why 0.3 Microns Is the Most Penetrating Particle Size (MPPS)
The combination of interception, impaction, diffusion, and sieving ensures that HEPA filters are highly effective across a broad range of particle sizes. However, particles around 0.3 microns represent a critical point known as the Most Penetrating Particle Size (MPPS). At this size:
- Particles are too large to be captured efficiently by diffusion
- Too small for easy interception or impaction
- Small enough to potentially pass through without collision
Because of this, HEPA filters are tested and certified based on their performance at 0.3 microns, the point where filtration efficiency is naturally at its lowest. If a HEPA filter can maintain ≥99.97% retention at 0.3 microns, its efficiency for both smaller and larger particles is typically even higher.
Types of HEPA Filters Used in the Pharmaceutical Industry
Different pharmaceutical applications, from large-volume manufacturing areas to critical aseptic filling zones, require different types of HEPA filters. The choice depends on the necessary level of air cleanliness, airflow dynamics, risk assessments, and regulatory expectations.
Below are the main types of HEPA and advanced filters commonly used in pharmaceutical facilities:
Standard HEPA Filters (H13 and H14)
Classification: According to DIN EN 1822-1, HEPA filters are graded based on their efficiency.
- H13: ≥99.95% particle retention at MPPS
- H14: ≥99.995% particle retention at MPPS
Applications:
- HVAC supply systems for Grade C and D cleanrooms.
- General air handling units where ISO Class 7 or 8 conditions are maintained.
Selection: H14 is generally preferred where stricter cleanliness levels (e.g., Grade B) are required.
ULPA Filters (Ultra-Low Penetration Air Filters)
Efficiency: ≥99.9995% at MPPS (higher than HEPA)
Applications:
- Aseptic filling isolators.
- Critical Grade A environments where extreme particle control is required.
Note: While ULPA filters offer higher particle retention, they also generate higher pressure drops and may require stronger fan systems.
Terminal HEPA Filters
Definition: Filters mounted at the terminal point of the air supply system, usually at the ceiling or wall of the cleanroom.
Applications:
- Providing the final barrier between the HVAC system and critical processing areas.
- Common in Grade A/B cleanrooms, particularly over laminar flow hoods or filling lines.
Advantages:
- Direct control of air cleanliness at the point of use.
- Easier qualification (integrity testing is localized and faster).
High-Capacity HEPA Filters for Large Airflows
Design: Built to accommodate higher airflow rates while maintaining HEPA-level efficiency with lower pressure drops.
Applications:
- Large-scale production cleanrooms (Grade C/D).
- Warehouses and secondary packaging areas requiring particle control but not aseptic conditions.
Benefit: Energy efficiency by reducing fan load and operational costs.
Gel-Seal HEPA Filters
Definition: Filters equipped with a gel-based sealing system instead of traditional compressed gaskets.
Applications:
- Critical aseptic environments (Grade A filling lines, isolators).
- Areas where maximum sealing integrity is required (no risk of gasket compression loss).
Advantages:
- Excellent leak protection.
- Easier to achieve consistent sealing during installation.
Annex 1 Alignment: Suitable for areas where strict contamination control and leak-free performance are mandatory.
SEE ALSO: Cleanroom Classifications: Grade A, B, C, D
Specialized HEPA Filters
While standard HEPA filters (H13, H14) and ULPA filters meet the needs of most pharmaceutical environments, certain specialized manufacturing areas demand enhanced filtration solutions designed to withstand additional operational stresses.Â
These include the production of cytotoxic compounds, radiopharmaceuticals, and highly potent active pharmaceutical ingredients (HPAPIs).
One such specialized category is Type E HEPA filters.
Type E HEPA Filters
Type E filters are high-efficiency particulate air filters explicitly constructed to meet rigorous mechanical, chemical, thermal, and radiological resistance requirements. They are traditionally associated with nuclear industry standards but are also applicable to pharmaceutical sectors dealing with hazardous substances.
- Construction Differences:
- Materials: Heavy-duty frames (e.g., stainless steel), reinforced filter media resistant to chemical degradation and radiation exposure.
- Sealing Systems: Enhanced gaskets and sealants capable of withstanding corrosive decontamination agents and high temperatures.
- Durability: Designed to maintain structural integrity under conditions more extreme than those typically encountered in standard cleanroom environments.
- Applications in the Pharmaceutical Industry:
- Facilities producing radiopharmaceuticals.
- Manufacture of highly potent or toxic APIs requiring enhanced containment measures.
- Cytotoxic drug compounding and sterile manufacturing areas where containment of hazardous airborne particles is critical.
- Performance Expectations:
- Maintain ≥99.97% efficiency at 0.3 microns, with additional robustness against mechanical and chemical degradation.
- Capable of maintaining performance after exposure to sterilizing agents (e.g., hydrogen peroxide vapor) and radiation fields in the case of radioactive drug production.
Construction of HEPA Filters
The construction of HEPA filters is critical to their performance, durability, and compliance with pharmaceutical GMP requirements. Each component of the filter is designed to support the efficient capture of airborne particles while maintaining airflow and structural integrity under operational stresses.
A typical HEPA filter consists of the following key elements:
Filter Media
The core functional component of a HEPA filter is the filter media, a densely packed mat of randomly arranged fibers.
- Material: Typically composed of glass microfiber, although synthetic polymer fibers may be used in some applications.
- Structure: The fiber network is irregular and layered to maximize particle capture while minimizing airflow resistance.
- Performance: The media must retain high mechanical strength and chemical compatibility (e.g., resistance to hydrogen peroxide used in decontamination), while maintaining integrity under high air velocities.
Separator Designs and Their Role
Separators are inserted between the pleats of the filter media to maintain even spacing and prevent collapse.
- Types of Separators:
- Aluminum foil: Common in traditional HEPA filters, offering excellent durability and heat resistance.
- Hot-melt adhesives: Used in separatorless designs, creating a more uniform airflow path and reducing metal contamination risks.
- Proper spacing enhances airflow distribution, ensuring that the entire media surface is utilized for particle capture.
Frame
The frame provides mechanical stability and protects the filter during handling, installation, and operation.
- Materials:
- Aluminum: Lightweight, corrosion-resistant, widely used in pharmaceutical settings.
- Stainless steel: Preferred for high-humidity or aggressive environments.
- Plastic or MDF (Medium Density Fiberboard): Used in less critical applications.
- Frames must be robust enough to withstand pressure differentials without deforming or compromising seal integrity.
Sealant
Sealant is used to bond the filter media to the frame, preventing air bypass.
- Common materials: Polyurethane, epoxy, or silicone-based sealants.
- The sealant must remain stable under temperature fluctuations and during decontamination procedures.
Gasket
The gasket ensures a tight, leak-proof connection between the filter and its housing.
- Types:
- Neoprene: Durable and widely used, but sensitive to some sterilants.
- Silicone or polyurethane foam: Better chemical resistance and compressibility.
- Gel Seal: Advanced option offering superior leak resistance, often used in critical aseptic processing areas (e.g., isolators, Grade A zones).
- Proper gasket compression is essential for maintaining filter integrity and preventing unfiltered air leakage.
Optional Features
- Protective screens: Wire mesh or perforated guards may be used on the airflow side to protect the media from damage during installation and maintenance.
- Handles and identification labels: Allow easier handling, identification, and tracking during qualification and replacement.
Key Construction Requirements of HEPA FiltersÂ
- All construction materials must be compatible with cleanroom-grade cleaning agents and resistant to decontamination cycles.
- Frames and gaskets must maintain airtight seals even after repeated exposure to sterilants like vaporized hydrogen peroxide (VHP).
- Filter identification (e.g., serial number, efficiency rating) must be clearly marked to support traceability and qualification documentation.
- The design must allow for integrity testing (e.g., DOP/PAO challenge) without introducing dead zones or hard-to-reach areas.

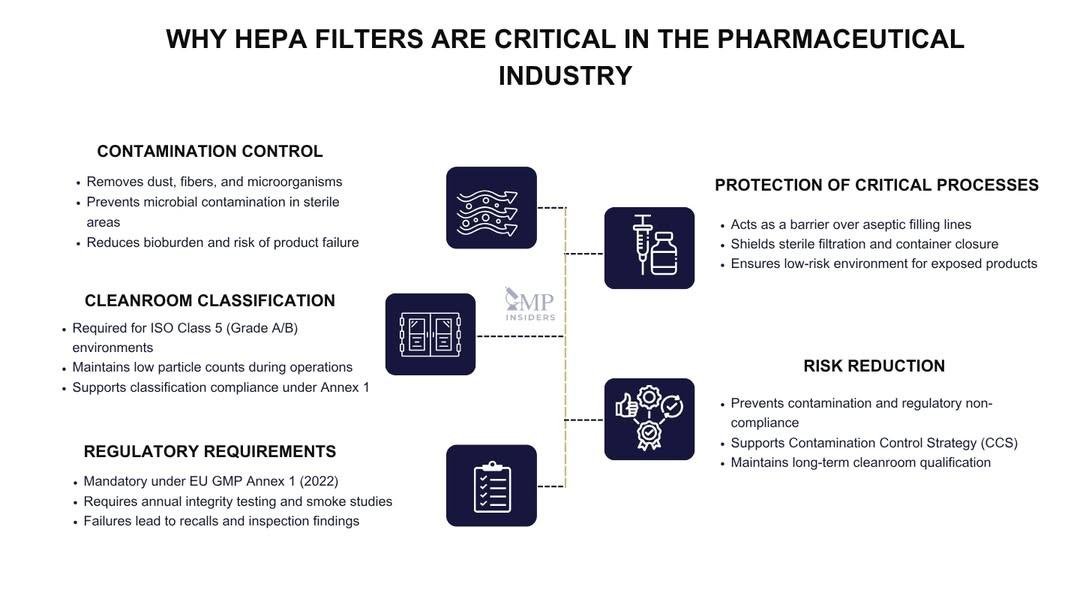

Why HEPA Filters Are Critical in the Pharmaceutical Industry
Controlling airborne particulate and microbial contamination is fundamental to safeguarding product quality and ensuring patient safety. HEPA filters serve as a primary barrier against contaminants entering controlled environments, supporting both regulatory compliance and operational excellence.
Contamination Control
HEPA filters remove particulate matter that could otherwise compromise product sterility or integrity. This includes:
- Non-viable particles (dust, fibers, aerosols) that may act as carriers for microorganisms.
- Viable particles (bacteria, fungi, viruses) that can directly contaminate sterile or sensitive products.
By maintaining clean air conditions, HEPA filters reduce the bioburden in manufacturing environments, directly impacting product shelf life and patient risk.
SEE ALSO: Contamination, Cross-Contamination, and Mix-Ups
Cleanroom Classification
Achieving and maintaining cleanroom classifications, as defined by ISO 14644-1 and Annex 1, is impossible without effective air filtration. HEPA filters are mandatory for:
- Grade A: The most critical zone (e.g., aseptic filling), requiring air quality equivalent to ISO Class 5, both at rest and in operation.
- Grade B: Background environment for Grade A operations; must also meet ISO Class 5 at rest and maintain low particle levels during operation.
- Grade C and Grade D: Used for less critical steps in sterile product manufacturing. These areas correspond roughly to ISO Class 7–8 (Grade C) and ISO Class 8 or lower (Grade D), depending on process requirements.
Proper HEPA filtration ensures that particle counts remain within strict regulatory limits during dynamic operating conditions, not just at rest.
Regulatory Requirements (Annex 1 Alignment)
According to the latest EU GMP Annex 1 (2022 revision):
- Grade A and B areas must be supplied with air that passes through HEPA filters.
- Pharmaceutical cleanroom filters must undergo integrity testing after installation, after maintenance, and at least annually.
- Airflow visualization (smoke studies) must confirm unidirectional flow patterns and demonstrate contamination control.
Failure to maintain properly installed and tested HEPA filters can result in regulatory findings during GMP inspections, product recalls, and even facility shutdowns.
Protection of Critical Processes
In areas where sterile products, raw materials, or open containers are exposed to the environment, HEPA-filtered air acts as an invisible shield, ensuring that critical operations are conducted under controlled, low-contamination conditions.
This is particularly vital for:
- Aseptic filling lines
- Sterile filtration processes
- Compounding of high-risk parenteral solutions
- Final container closure operations
Risk Reduction and Quality Assurance
A robust HEPA filtration system forms part of a broader Contamination Control Strategy (CCS) as required under Annex 1. It reduces the risk of:
- Batch contamination
- Product recalls
- Regulatory non-compliance
- Harm to patients
By integrating HEPA filters into a validated HVAC system with regular maintenance, pharmaceutical manufacturers can demonstrate strong quality assurance practices and maintain a defensible state of control.
SEE ALSO: Risk-based Contamination Control Strategy
HEPA Filter Installation and QualificationÂ
Correct installation and qualification of HEPA filters are essential to ensure their performance in maintaining cleanroom classifications and compliance with GMP requirements.
Both EU GMP Annex 1 (2022) and ISO 14644-3 emphasize the importance of rigorous initial qualification, regular requalification, and preventive maintenance to sustain the validated state of air cleanliness.
Best Practices for Installation of HEPA Filters in Cleanrooms
Some of the things you should consider when installing HEPA filters include:
- Orientation: HEPA filters must be installed in the correct airflow direction, ensuring uniform distribution across the filter surface.
- Mounting: Filters must be securely mounted within frames to prevent air leakage around the perimeter.
- Seal Integrity: Proper compression of gaskets or setting of gel seals must be verified during installation.
- Protective Measures: Care must be taken to prevent damage to the filter media during handling. Protective screens may be used to shield the press from mechanical damage.
Special Attention:
- For ceiling-mounted terminal filters in Grade A/B zones, proper alignment with airflow visualization patterns is critical.
- Access must be provided for future integrity testing without removing the filter unless replacement is needed.
Qualification Requirements (EU GMP Annex 1 Expectations)
To maintain the required air quality within cleanroom environments, HEPA and ULPA filters must undergo formal qualification as part of the overall contamination control strategy (CCS). Below are the key elements involved in qualifying these filters, as outlined in Annex 1.
Integrity Testing Methods: PAO and DOP Challenges
Purpose: To confirm that the filter is seated correctly and functioning without leaks that could compromise the cleanroom environment.
When is it required?
- After the initial installation of the filter.
- Following maintenance activities or any interventions that could impact the filter seal or housing.
- At least annually as part of routine requalification.
Method:
- Conduct aerosol challenge testing using either PAO (polyalphaolefin) or DOP (dioctyl phthalate) aerosols.
- A known concentration of aerosol is introduced upstream of the filter, and the downstream side is scanned for any signs of leakage.
Acceptance Criteria:
- Grade A and B areas: No detectable leaks are permitted.
- If any leaks are found, they must be immediately repaired or the filter must be replaced and retested before the area can be released for use.
Airflow Visualization (Smoke Studies)
Purpose: To visually confirm that unidirectional (laminar) airflow is maintained over critical areas, ensuring that there are no stagnant zones, turbulence, or reverse flows that could compromise product sterility.
When is it required?
- During the initial qualification of aseptic processing areas.
- As part of requalification following any significant modifications (e.g., equipment changes, layout adjustments, HVAC interventions).
Documentation Requirements:
- Video recordings of the smoke studies must be retained.
- Smoke pattern diagrams should be included in the qualification report and integrated into the CCS.
Air Velocity and Uniformity Measurements
Proper air velocity and flow uniformity are crucial to ensure the effective sweeping away of contaminants in unidirectional airflow areas.
For Unidirectional Flow Zones (e.g., Grade A):
- Air velocity should typically fall within the range of 0.36–0.54 m/s.
- Target values must be defined in the User Requirement Specification (URS) and verified during qualification.
For Non-Unidirectional Areas (e.g., Grade B, C, D):
- Air change rates and air dilution efficiency must be demonstrated through measurable airflow data.
- These parameters must support the intended cleanliness classification of the area.
Pressure Differential Monitoring
Purpose: To prevent contamination migration by maintaining directional airflow and pressure cascades between rooms of different classifications.
Requirements:
- Pressure differentials must be maintained in line with predefined setpoints (commonly ≥10–15 Pa between adjacent cleanroom grades).
- Continuous monitoring systems should be installed to track differential pressure across HEPA-filtered boundaries and critical zones.
Documentation and Traceability
Comprehensive documentation is a regulatory expectation and must be made available during audits and inspections.
Key records to maintain:
- Installation records of each filter, including serial number, efficiency class, and installation date.
- Signed and approved qualification protocols, testing results, and requalification reports.
Documentation supporting the inclusion of these systems in the facility’s Contamination Control Strategy (CCS) and maintenance plans.
| Test Type | Purpose | Frequency | Required For |
|---|---|---|---|
| PAO/DOP Test | Verify no leakage | After install & annually | Grade A/B |
| Smoke Study | Confirm airflow direction & patterns | After major changes | Grade A/B |
| Air Velocity | Measure airspeed for unidirectional flow | During qualification | Grade A |
| Pressure Diff. | Maintain directional air barrier | Continuous monitoring | All zones |

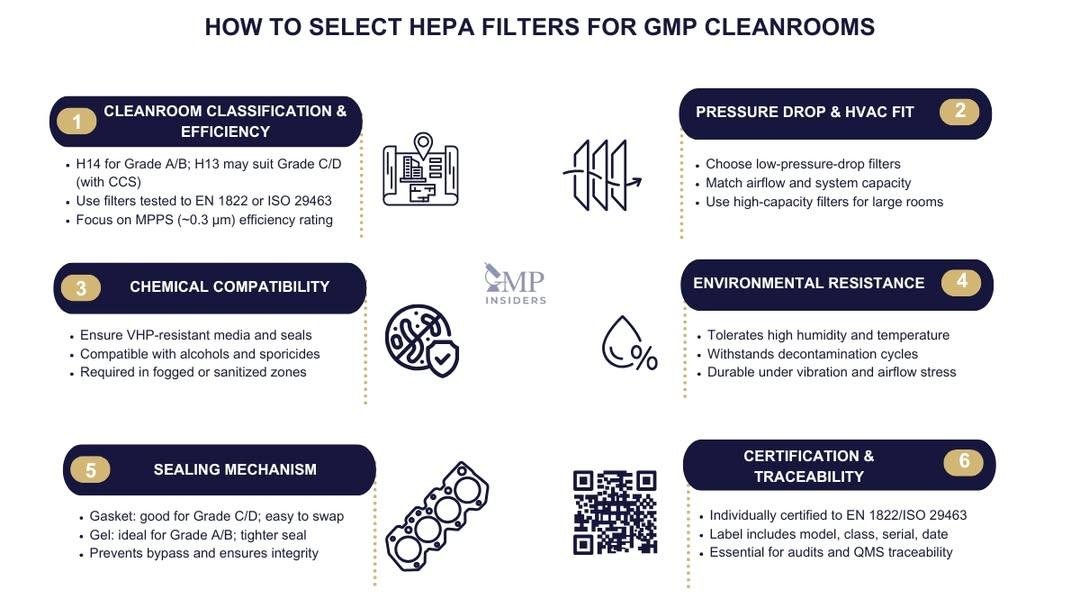

How to Select HEPA Filters for GMP Cleanrooms
Selecting the appropriate HEPA filter is a critical decision in pharmaceutical facility design and qualification. It must be designed with full consideration of cleanroom classification, process risk, environmental compatibility, and regulatory alignment, particularly following EU GMP Annex 1.
Below are the key selection criteria to guide this process:
Â
Particle Retention Efficiency
The primary role of a HEPA filter is to remove airborne particulate contaminants, making filtration efficiency the foundation of any selection decision.
Cleanroom Classification Requirements:
- Grade A and B areas (ISO Class 5) require filters with very high efficiency, typically classified as H14 or higher.
- Grade C and D areas (ISO Class 7–8) may accept H13 filters, provided that a risk-based justification is documented in the Contamination Control Strategy (CCS).
Standard References:
- Filters must be tested and classified according to EN 1822 or ISO 29463.
- Always verify efficiency at the Most Penetrating Particle Size (MPPS), typically around 0.3 microns, which represents the most difficult size range to capture.
Pressure Drop and Airflow Compatibility
Efficiency is essential, but not at the cost of disrupting HVAC system performance.
Initial Pressure Drop:
- Select filters with a low initial pressure drop to minimize energy consumption and reduce strain on air handling units.
System Compatibility:
- Filters must match the airflow volume and static pressure capacity of the HVAC system.
- Oversized or overly restrictive filters can lead to airflow imbalance or energy inefficiency.
High-Capacity Applications:
- In large cleanrooms requiring high air change rates, consider high-volume HEPA filters designed to accommodate larger airflow demands while maintaining efficiency and minimizing energy loss.
Chemical Compatibility with Decontamination Agents
Filters must withstand repeated exposure to chemical agents used in cleanroom decontamination without degradation.
VHP Compatibility:
- In areas where Vaporized Hydrogen Peroxide (VHP) is used routinely, ensure that the filter media, frame, gasket, and sealants are fully resistant to oxidation and corrosion.
Other Agents:
- Filters may also need to resist contact with alcohol-based disinfectants, sporicidal agents, or steam, depending on the facility’s sanitation program.
Environmental Resistance and Durability
Environmental stress factors such as humidity, temperature, and mechanical stress should be considered when selecting filter materials.
Temperature and Humidity Tolerance:
- Ensure the filter can withstand the maximum operational humidity and temperature ranges, especially during decontamination cycles such as VHP fogging.
Mechanical Strength:
- Select mechanically durable filters, especially in areas where frequent maintenance, vibrations, or turbulent airflow conditions are anticipated.
Sealing Mechanism: Gasket vs. Gel Seal
The filter-to-housing seal is a potential point of bypass leakage; proper selection is essential for maintaining validated integrity.
Gasket-Sealed Filters:
- Suitable for Grade C and D areas, provided that routine integrity testing is performed.
- Offer easier replacement but depend on consistent compression for a proper seal.
Gel-Sealed Filters:
- Recommended for Grade A and critical Grade B environments where the risk of bypass leakage must be minimized.
- Provide a more consistent and tight seal, which simplifies qualification and enhances contamination control.
Certification and Traceability
Only filters that have undergone individual testing and certification from qualified manufacturers should be used in GMP pharmaceutical settings.
Certification Requirements:
- Filters must be certified according to EN 1822, ISO 29463, or an equivalent globally recognized standard.
- Each filter should pass factory-based leak testing before being shipped.
Traceability Information:
- Pharmaceutical cleanroom filters should have clear, permanent labeling including:
- Model/type
- Efficiency class
- Unique serial number
- Production and test date
- Manufacturer details
- These identifiers support traceability during audits, inspections, and change control reviews.
Regulatory Requirements for HEPA Filters in Pharmaceuticals
International regulatory standards mandate the use of HEPA filters in pharmaceutical manufacturing to protect product quality and patient safety.
ISO 14644: Cleanroom Classification
- ISO 14644 defines the classification of air cleanliness based on particle concentration.
- To achieve ISO Class 5 conditions, HEPA filtration is essential.
- Particle counts must remain within strict limits for different cleanroom grades, with HEPA filters installed to maintain these standards.
EU GMP Annex 1 (2022 Revision)
- Mandatory for Critical Zones: Grade A and Grade B areas must be supplied with HEPA-filtered air.
- Filter Integrity Testing:
- Required after installation, after any maintenance that could affect the filter, and at least annually thereafter.
- Integrity testing typically involves aerosol-based methods using PAO (polyalphaolefin) or DOP (dioctyl phthalate) challenge tests.
- Leak Testing:
- No leaks are acceptable in critical zones (Grade A); even minor leaks must be repaired or the filter replaced.
- Airflow Visualization (Smoke Studies):
- Airflow patterns must be demonstrated during qualification to ensure unidirectional flow and minimize turbulence that could cause contamination.
- Preventive Maintenance and Monitoring:
- HEPA filters must be included in preventive maintenance programs, with documented performance checks and inspections.
FDA Guidance for Industry: Sterile Drug Products Produced by Aseptic Processing (2004)
- The FDA also emphasizes that clean areas should be supplied with air filtered through HEPA filters under positive pressure.
- Regular integrity testing of HEPA filters is a critical expectation during facility inspections.
- Facilities must demonstrate that airflows prevent contamination, supported by proper airflow visualization and environmental monitoring data.
FAQ
Why Is 0.3 Microns Considered the Most Penetrating Particle Size (MPPS)?
The 0.3-micron size is considered the most penetrating because it is the point at which standard filtration mechanisms are least efficient in capturing particles.Â
Particles larger than 0.3 microns are typically caught by interception and impaction, while smaller ones are captured through diffusion. This makes 0.3 microns the benchmark for filter efficiency testing under standards like EN 1822 and ISO 29463.
How Often Must HEPA or ULPA Filters Be Integrity Tested?
Integrity testing must be performed after the initial installation of the pharmaceutical cleanroom filters and then at regular intervals, typically at least once per year. Additionally, filters must be retested following any maintenance that may impact their sealing or structure. These tests are required by EU GMP Annex 1 to ensure continuous performance in critical cleanroom zones.
Can ULPA Filters Be Retrofitted into an HVAC System Designed for HEPA Filters?
Retrofitting ULPA filters into a system designed initially for HEPA filters is generally not recommended without a thorough engineering assessment.Â
ULPA filters create a higher pressure drop, which may exceed the capacity of existing fans and disrupt airflow balance. Any retrofit must be validated to ensure it does not compromise cleanroom classification or airflow dynamics.
Are ULPA Filters Harder to Validate Than HEPA Filters?
Yes, ULPA filters are more challenging to validate due to their higher efficiency and tighter tolerances. Leak testing and airflow verification require more sensitive equipment and stricter acceptance criteria. This increases the complexity and duration of the qualification process, particularly in critical areas such as isolators.
What Factors Can Shorten Filter Lifespan?
The lifespan of a filter can be reduced by high particulate loading, elevated humidity, chemical exposure, or inadequate pre-filtration. Operational factors such as frequent airflow fluctuations or vibrations may also contribute to premature wear. Monitoring pressure drop trends and environmental conditions is essential for timely maintenance.
Should Filter Replacement Always Trigger a Cleanroom Requalification?
Yes, replacing a HEPA or ULPA filter in a classified cleanroom should always be followed by requalification. This includes leak testing, airflow measurements, and potentially smoke studies depending on the zone. Requalification ensures the filter is functioning correctly and the cleanroom continues to meet GMP requirements.
Final Thoughts
High-Efficiency Particulate Air (HEPA) filters are critical to maintaining controlled environments in pharmaceutical manufacturing. Their primary function is to ensure that airborne particulate and microbial contamination remains within acceptable limits, thereby supporting product quality, patient safety, and compliance with Good Manufacturing Practice (GMP) requirements.
The effective application of HEPA filters depends on appropriate selection, correct installation, and consistent performance verification. This includes initial qualification, routine integrity testing, and alignment with regulatory expectations, particularly those outlined in ISO 14644-1 and the 2022 revision of EU GMP Annex 1.
Different cleanroom grades and manufacturing processes require different types of HEPA and advanced filters. Understanding the mechanisms of particle capture, construction standards, and operational requirements is essential for ensuring that air filtration systems perform reliably under both static and dynamic conditions.
HEPA filters must be viewed not simply as components of the HVAC system, but as integral elements of a facility’s contamination control strategy. Their proper management is essential to sustaining a compliant and controlled manufacturing environment.
