Granulation is one of the most critical operations in pharmaceutical manufacturing, especially for the production of solid oral dosage forms (SODFs) such as tablets and capsules. Among all unit operations that transform raw drug substances and excipients into a finished medicine, granulation influences the manufacturability, stability, quality, and performance of the final dosage form.
Two major pathways dominate pharmaceutical granulation practice: wet granulation and dry granulation. Each relies on different scientific principles, employs distinctive unit operations, and carries unique practical implications.
Wet granulation employs a binding liquid, most commonly water or hydroalcoholic solutions, to physically agglomerate fine particles into dense, cohesive granules. Dry granulation eliminates the need for a liquid step, instead mechanically compacting powders under pressure into ribbons or slugs, which are then milled and sized into granules.
Selecting between these two techniques is never straightforward. Each formulation presents challenges tied to the physicochemical properties of the active pharmaceutical ingredient (API), the functionality of excipients, the scale of operation, cost, stability requirements, and the regulatory context.
This expanded comparison aims to provide an in-depth exploration of wet and dry granulation, including their historical developments, fundamental mechanisms, operational advantages and challenges, regulatory perspectives, and emerging technologies. The objective is to provide formulation scientists, process engineers, and regulatory professionals with a comprehensive and practical framework for informed decision-making.
Overview of Granulation Process
Granulation dates back centuries. In early apothecaries, powders were often difficult to administer and handle. Pharmacists manually moistened and rolled powders into small aggregates (primitive granules) to reduce dust and improve dosing uniformity.
The Industrial Revolution and the rise of compressed tablets (mid-19th century) accelerated granulation research, as larger-scale uniformity became increasingly essential.
- Wet granulation emerged first as the dominant industrial method, using natural binders such as starch paste.
- Dry granulation evolved later, particularly during wartime, when water-sensitive drugs required alternative methods.
- By the late 20th century, roller compaction brought precision, scalability, and continuous operation to dry granulation.
Objectives of Granulation
Some of the main objectives of the granulation process include:
- Flow properties: Achieving consistent die filling during compression and reducing variability in tablet weight.
- Compressibility: Ensuring granules withstand compaction without producing fragile or friable tablets.
- Content uniformity: Preventing segregation of APIs and excipients, especially for low-dose formulations.
- Dust control and safety: Reducing operator exposure and cross-contamination risks.
Stability and performance: Modifying porosity, surface area, and dissolution characteristics.
| Objective | Description | Typical GMP Controls |
|---|---|---|
| Flow properties | Improve die filling, reduce variability | Flow index, angle of repose, bulk/tapped density |
| Compressibility | Achieve consistent tablet strength | Compaction profile monitoring |
| Content uniformity | Prevent segregation | Blend uniformity testing |
| Dust control | Reduce exposure and contamination | Air handling and containment validation |
| Stability | Maintain product integrity | Controlled humidity, validated drying |
From a GMP perspective, granulation is not simply particle enlargement. It is a critical quality-defining step where:
- Critical Material Attributes (CMAs) such as API particle size and excipient functionality must be understood.
- Critical Process Parameters (CPPs), such as binder ratio, compaction pressure, and drying time, must be defined and controlled.
- Critical Quality Attributes (CQAs), including particle size distribution, bulk density, and residual moisture, must consistently meet the specified requirements.
This alignment between materials, process, and quality is what makes granulation a focal point of validation, monitoring, and regulatory scrutiny.
Related Article: Granulation Processes in Pharma Industry
Wet Granulation
Wet granulation is the most established and widely used method in pharmaceutical manufacturing. It involves adding a granulation liquid, such as purified water or a hydroalcoholic solution, to a powder blend. The liquid acts as a binder, causing particles to adhere and form wet agglomerates that are later dried and milled into granules of controlled size and density.

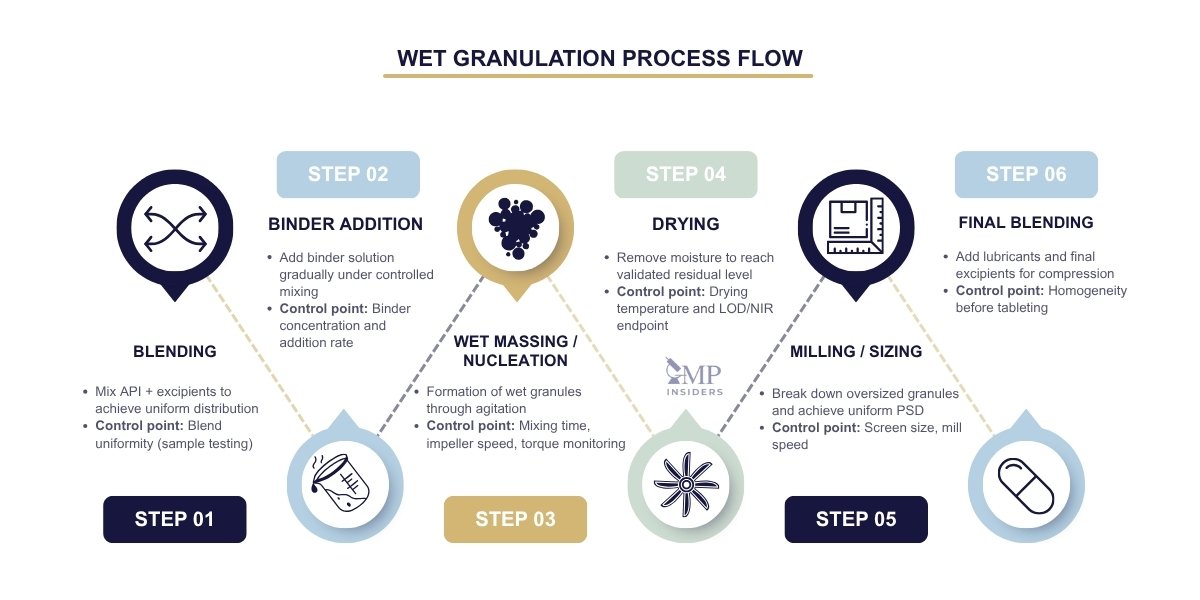

Process Overview
The process typically follows a sequence of steps that must be tightly controlled to maintain reproducibility:
- Blending of the API with excipients
- Addition of binder solution and wet massing under defined mixing conditions
- Formation of granules through nucleation and growth
- Drying to the validated residual moisture content
- Sizing or milling to obtain the required particle size distribution
Advantages
Wet granulation offers several benefits that make it suitable for a wide range of formulations:
- Granules with excellent flowability and compressibility, enabling high-speed tableting
- Enhanced content uniformity, particularly important for low-dose or highly potent APIs
- Reduced dust formation, improving operator safety, and minimizing cross-contamination risks
- Stronger tablets with improved mechanical stability during coating, transport, and storage
Limitations
Despite its wide application, wet granulation also has limitations that must be considered:
- Unsuitable for APIs sensitive to moisture or elevated drying temperatures
- More complex and resource-intensive, requiring additional equipment and process steps
- Higher operational costs due to drying and cleaning requirements
- Risk of over-wetting or under-wetting, leading to variability in granule quality
GMP Considerations
In a GMP environment, wet granulation requires well-defined controls to ensure consistency and compliance:
- Drying endpoints must be validated and monitored, commonly by Loss on Drying (LOD) or Near-Infrared (NIR) spectroscopy
- Binder preparation must follow documented procedures with strict control of solvent quality and storage
- Microbial risks introduced by aqueous systems require validated cleaning and bioburden control strategies
- Equipment must be designed and qualified to avoid cross-contamination and allow effective cleaning
- In-process controls typically include torque or power draw during massing, granule size analysis, residual moisture, and bulk or tapped density measurements
Dry Granulation
Dry granulation is an alternative technique used when APIs or excipients are sensitive to heat or moisture. Unlike wet granulation, it does not involve a liquid binder or drying step. Instead, powders are densified through compaction, either by slugging with a tablet press or by roller compaction, and then milled into granules with the desired particle size distribution.

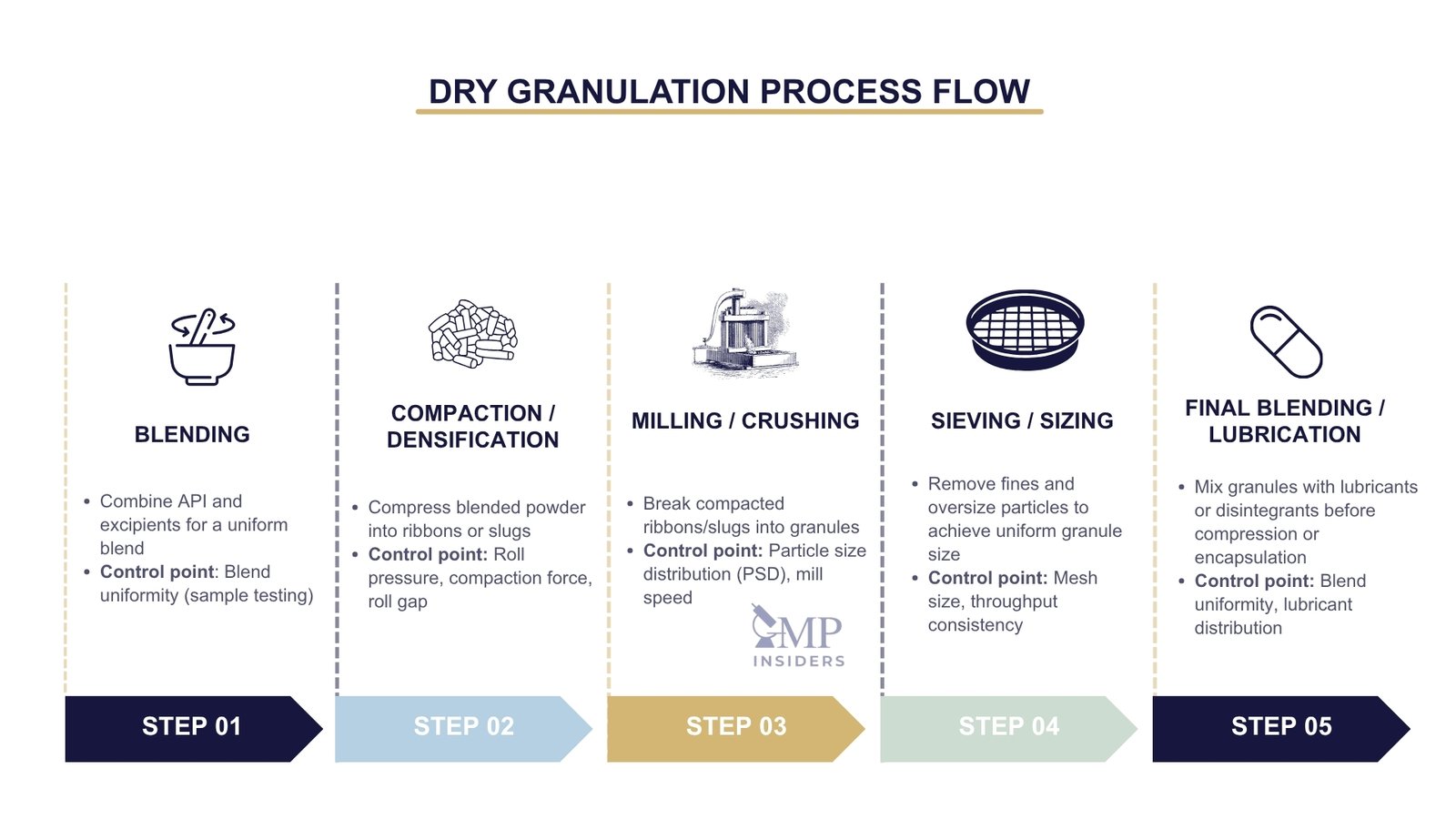

Process Overview
The method is straightforward in principle but requires precise control of compaction forces to achieve reproducible results:
- Blending of the API with excipients
- Compaction into slugs using a tablet press, or densification by roller compaction
- Milling of the compacted material into granules
- Sizing and blending with external excipients before compression or encapsulation
Advantages
Dry granulation offers several benefits, particularly for formulations where wet granulation is not feasible:
- Solvent-free process, eliminating risks associated with residual solvents or microbial growth
- Suitable for moisture- and heat-sensitive APIs and excipients
- Fewer process steps and shorter cycle times compared to wet granulation
- Reduced energy consumption, as no drying is required
Limitations
Despite its efficiency, dry granulation presents challenges that must be carefully managed:
- Granules may show poorer flowability and compressibility than those produced by wet granulation
- Limited binding capacity places strong reliance on excipient functionality
- Risk of lamination, capping, or variable tablet hardness if compaction force is not well controlled
- Process uniformity can be more difficult to achieve at scale
GMP Considerations
From a GMP perspective, dry granulation requires rigorous control of equipment and process parameters:
- Compaction force and roll pressure must be defined, validated, and monitored to ensure consistency
- Particle size distribution following milling should be routinely checked
- Equipment wear, especially with roller compactors, can introduce metallic contamination that requires monitoring and preventive maintenance
- In-process controls include granule size, bulk and tapped density, and compaction pressure profiles

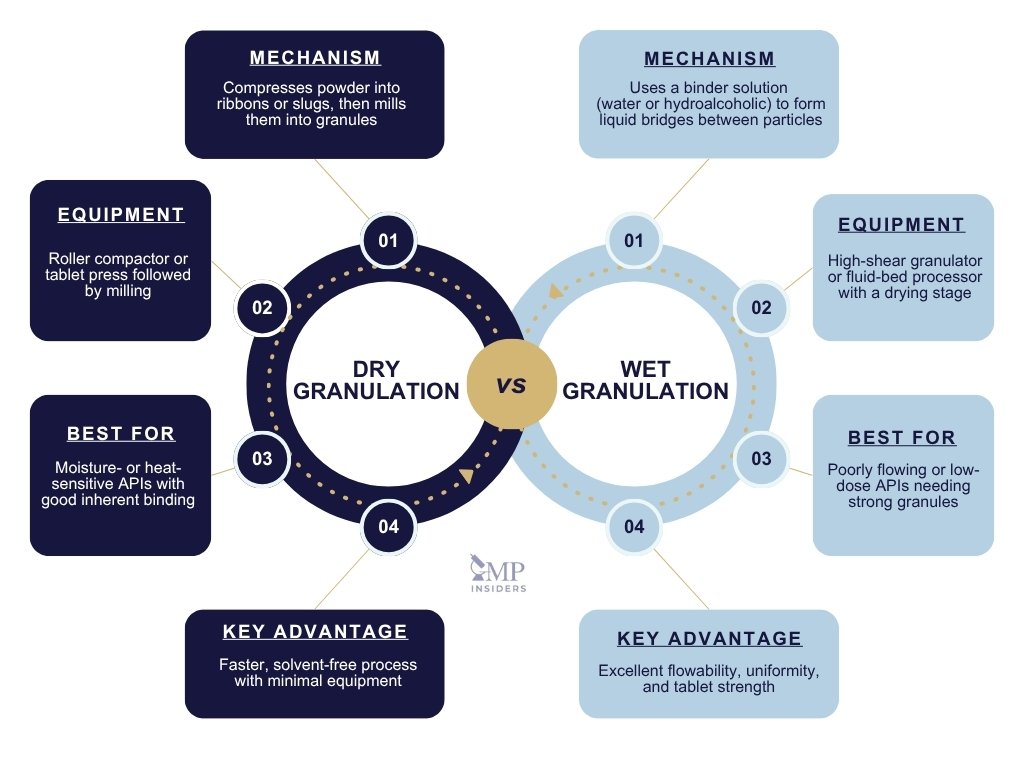

Wet vs Dry Granulation
Wet and dry granulation are not simply two different processes; they are two distinct technological approaches to solving formulation problems. Both are intended to improve powder handling and tablet manufacturability, but they achieve this through different mechanisms and, as a result, come with unique advantages, challenges, and GMP implications.
Process Characteristics
Wet granulation builds granules by creating liquid bridges between particles using a binder solution. Once dried, these bridges solidify into strong bonds, giving the granules excellent flowability and compressibility.
Dry granulation achieves densification by applying mechanical force, either through roller compaction or slugging, to form compacts that are then milled back into granules.
Key points:
- Wet granulation modifies both particle size and surface characteristics, often enhancing dissolution.
- Dry granulation primarily increases density and reduces segregation, but does not significantly alter particle surface properties.
- Wet processes are more forgiving of poor powder properties, while dry processes demand powders with inherently good binding characteristics.
Step-by-Step Process Comparison
Below is a side-by-side comparison of the key steps involved in wet and dry granulation:
| Step | Wet Granulation | Dry Granulation | Powder Blending |
|---|---|---|---|
| Mixing of API and excipients | Mixing of API and excipients | Mixing of API and excipients | Mixing of API and excipients |
| Binder Addition | Gradual addition of liquid binder solution | None | None |
| Granule Formation | Wet massing in a high-shear or fluid-bed granulator | Compaction using a roller compactor or a slugging press | Not applicable |
| Granule Size Control | Wet screening/sieving | Milling of compacted slugs/ribbons | Sieving if required |
| Drying | Required (tray dryer, fluid bed, or vacuum dryer) | Not required | Not required |
| Final Blending | Addition of lubricants and additional excipients post-drying | Addition of lubricants before compression | Final addition of lubricants |
Wet granulation has more steps, including drying, and tends to take longer. Dry granulation, with fewer unit operations, is simpler and quicker but may require optimization to achieve comparable granule quality.
Equipment and Complexity
The equipment sets these methods apart.
- Wet granulation requires high-shear granulators or fluid-bed processors, dryers, and milling systems. This makes the process more complex and equipment-intensive, with higher cleaning validation needs.
- Dry granulation requires a roller compactor (or, less commonly, slugging with a tablet press) and a mill. While simpler in equipment footprint, dry granulation depends heavily on precise control of compaction force and roller settings.
From a GMP perspective:
- Wet granulation requires validated cleaning procedures due to the presence of binder residues and the risk of microbial contamination.
- Dry granulation requires monitoring of equipment wear and potential metallic contamination from compaction rolls.
Excipients and Formulation Flexibility
Formulation flexibility is often the deciding factor.
- In wet granulation, a wide range of binders can be used, such as polyvinylpyrrolidone (PVP), hydroxypropyl methylcellulose (HPMC), starch paste, or gelatin. These excipients allow formulators to compensate for APIs with poor compressibility or low dose uniformity.
- In dry granulation, the options for excipients are more limited. Materials with inherent binding capacity, such as microcrystalline cellulose (MCC), dibasic calcium phosphate (DCP), or directly compressible lactose, are necessary. Without a binder phase, dry granulation cannot “rescue” weak formulations.
Example: A low-dose API, such as levothyroxine, would almost always require wet granulation to ensure content uniformity, whereas a robust excipient-based vitamin blend may be suitable for dry granulation.
Pharmaceutical Performance
The impact on tablet quality is a critical point of comparison:
- Wet granulation typically produces granules with superior flow and compressibility, resulting in tablets with consistent weight, hardness, and friability. The presence of a binder can also improve dissolution profiles for certain APIs.
- Dry granulation produces granules with acceptable but often inferior flow compared to wet granules. Tablets are more prone to lamination or capping if compaction forces are not carefully controlled. Dissolution may vary depending on compaction density.
Scale-Up and Process Control
Scaling each method introduces distinct risks.
- In wet granulation, maintaining uniform liquid distribution and consistent drying profiles is difficult at larger scales. Over- or under-wetting can result in non-uniform granule size and variable mechanical strength.
- In dry granulation, feed fluctuations and roll pressure variability can produce inconsistent granule density and content uniformity issues. Elastic recovery during compaction is also a known source of variability.
Control strategies:
- Wet granulation benefits from PAT tools like NIR for moisture monitoring and torque curves for endpoint detection.
- Dry granulation uses force sensors and roll-gap monitoring to ensure reproducibility.
Case Example: Paracetamol vs Vitamins
Paracetamol (acetaminophen) is a cohesive, poorly flowing powder that is commonly wet granulated. The binder solution helps improve flow and compressibility, ensuring uniformity in large-scale production. Direct compression of paracetamol is only possible with specially engineered excipients, which increases the cost.
Vitamin blends, on the other hand, often include excipients with good inherent binding capacity. Dry granulation through roller compaction is frequently preferred, as it avoids the use of moisture (important for hygroscopic vitamins like ascorbic acid) and reduces costs.
This illustrates how API properties and excipient compatibility guide the choice of technique.
| Aspect | Wet Granulation | Dry Granulation |
|---|---|---|
| Process principle | Particle agglomeration using liquid binders; solid bridges formed after drying | Powder densification via compaction (roller compaction or slugging) |
| Main equipment | High-shear granulator, fluid-bed processor, dryers, mills | Roller compactor or tablet press, mills |
| Process complexity | Multi-step, labor- and energy-intensive | Simpler sequence, but sensitive to compaction force |
| Excipients | Wide range; binders like PVP, HPMC, starch paste, gelatin | Limited; requires excipients with inherent binding (MCC, DCP, DC-lactose) |
| API suitability | Ideal for low-dose or cohesive APIs; improves content uniformity | Suitable for APIs sensitive to moisture or heat |
| Granule properties | Dense, cohesive, excellent flow and compressibility | Adequate flow, weaker binding, risk of lamination |
| Tablet quality | Strong, robust tablets with consistent hardness and friability | May show variable hardness, capping, or dissolution issues |
| Pharmaceutical performance | Can improve dissolution through binder distribution and porosity control | Maintains API integrity but dissolution may vary with density |
| GMP focus areas | Binder prep validation, drying endpoint control, microbial risk management | Compaction force validation, PSD control, metallic contamination |
| Scale-up challenges | Liquid distribution, drying uniformity, equipment geometry | Feed rate control, roll pressure consistency, elastic recovery |
Formulation and Performance Considerations of Dry vs Wet Granulation
Granulation method significantly influences key tablet attributes. The table below summarizes these differences:
| Property | Wet Granulation | Dry Granulation |
|---|---|---|
| Flowability | Consistently high due to uniform particle size | Variable; often requires additional excipients |
| Compressibility | Produces tablets with high tensile strength | Generally lower tablet hardness; excipient optimization needed |
| Dissolution | May be slow due to dense granules, but uniform release | A more porous structure may increase the dissolution rate, but it will be less uniform |
| Friability | Low; tablets show high mechanical integrity | Higher friability; tablets may be more fragile |
| Stability | Risk of moisture-induced degradation; careful drying is essential | Preferred for moisture- and heat-sensitive APIs |
| Content Uniformity | High; reduces segregation risk | Challenging in low-dose formulations; requires control |
| Disintegration | Controlled; may delay if granules are very hard | Faster disintegration, but risk of variable performance |
The ideal granulation strategy must align with the desired performance of the final dosage form, striking a balance between tablet strength, dissolution, stability, and manufacturing feasibility.

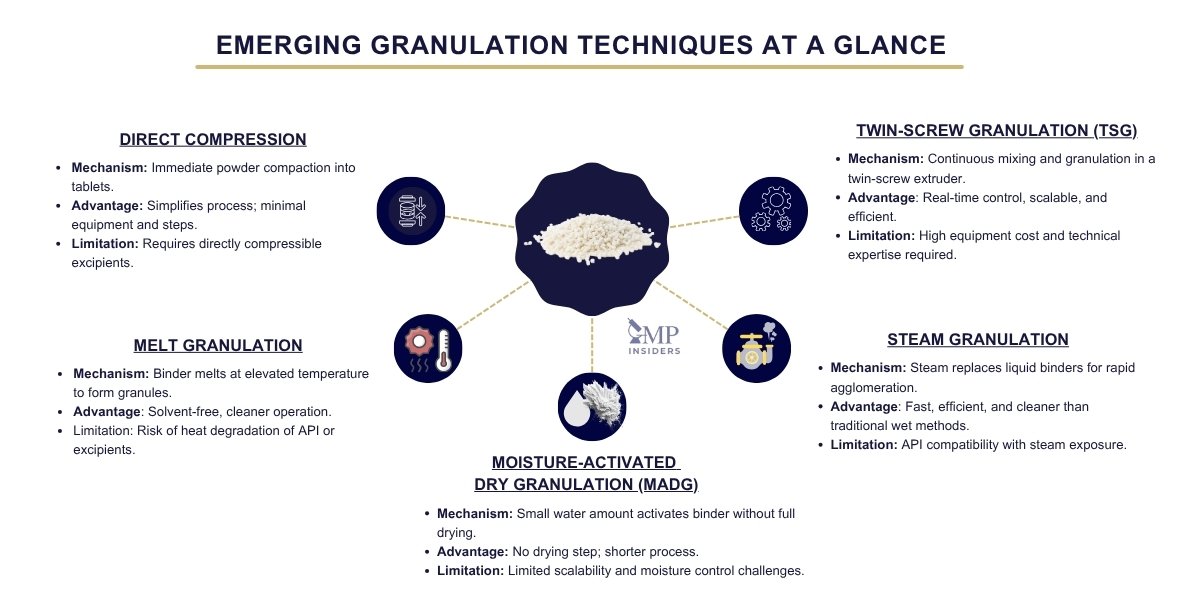

Alternative and Emerging Techniques
Although wet and dry granulation dominate pharmaceutical manufacturing, other techniques play an important role in specific situations. These methods are either applied where traditional approaches are unsuitable or as part of the industry’s move towards more efficient and sustainable processes.
Direct Compression
Direct compression bypasses granulation entirely by compressing powders directly into tablets. Its success depends almost entirely on the functional properties of the excipients. Microcrystalline cellulose (MCC), directly compressible lactose, and co-processed excipients such as Ludiflash® or Prosolv® provide excellent flowability and binding capacity.
Advantages
- Simplest and fastest method, requiring minimal processing steps
- Reduced risk of variability, as fewer operations are involved
- Lower energy and cleaning demands
Limitations
- Highly dependent on excipient quality — not all APIs can be directly compressed
- Increased risk of segregation during blending and transfer
- Limited flexibility in formulation design
From a GMP perspective, direct compression simplifies validation since fewer steps require qualification. However, it places stronger emphasis on excipient qualification, blend uniformity testing, and segregation risk assessment.
Melt Granulation
Melt granulation uses a binder that melts at elevated temperatures to agglomerate powders. Once cooled, the binder solidifies, locking particles together. This method is particularly attractive for solvent-sensitive formulations and can also enhance the dissolution of poorly soluble APIs by dispersing them within the binder matrix.
Advantages
- Solvent-free, eliminating microbial and residual solvent risks
- Improves dissolution and bioavailability of certain APIs
- Reduces dusting, improving operator safety
Limitations
- Risk of thermal degradation of API or excipients
- Requires specialized equipment and precise temperature control
- Cooling rate strongly influences granule structure and quality
Under GMP, melt granulation requires strict temperature monitoring, binder characterization (including melting point, viscosity, and purity), and validated cooling profiles.
Emerging and Hybrid Methods
Recent developments have introduced hybrid or novel granulation techniques, which aim to combine the strengths of existing methods while addressing their limitations. Examples include:
- Moisture-Activated Dry Granulation (MADG): uses a small amount of water to activate a binder, without requiring a drying step.
- Steam Granulation: replaces traditional binders with steam, offering faster processing and reduced binder residue.
- Foam-Assisted Granulation: binder is delivered as foam rather than liquid spray, improving distribution and reducing wetting variability.
- Twin-Screw Granulation (TSG): enables continuous wet granulation, offering better scalability and integration with continuous manufacturing platforms.
These methods are increasingly attractive in a regulatory climate that encourages continuous manufacturing, Process Analytical Technology (PAT), and risk-based approaches to process validation.
Regulatory Guidance
Regulators do not dictate whether wet or dry granulation must be used, but they require that whichever method is chosen is scientifically justified, validated, and controlled throughout the lifecycle. Several core guidelines provide the framework for managing granulation under GMP.
ICH Q8
ICH Q8(R2) (Pharmaceutical Development) emphasizes the importance of understanding how formulation and process variables impact product quality.
In granulation, this involves establishing relationships between binder concentration, spray rate, mixing speed, or compaction pressure and the final granule properties, such as size distribution, flowability, and compressibility. This understanding supports the creation of a design space and ensures process robustness.
Key expectations under ICH Q8(R2):
- Identify the relationship between Critical Material Attributes (CMAs), Critical Process Parameters (CPPs), and Critical Quality Attributes (CQAs).
- Use structured studies (e.g., DoE) to define proven acceptable ranges.
- Document scientific justification for choosing wet or dry granulation in the development report.
ICH Q9
ICH Q9(R1) (Quality Risk Management) requires risk-based decision-making in the design and control of processes. Granulation processes are inherently variable, and risks such as over-wetting, inconsistent drying, or roll pressure drift must be evaluated and mitigated to ensure optimal performance.
Key expectations under ICH Q9(R1):
- Apply tools such as FMEA or Ishikawa diagrams to identify high-risk parameters.
- Classify binder concentration (wet) or compaction force (dry) as critical risks requiring tight control.
- Implement proportionate controls to reduce risks without overburdening the process.
ICH Q10
ICH Q10 (Pharmaceutical Quality System) places granulation within the broader PQS framework. This ensures the process is not only validated but also consistently monitored and improved throughout its lifecycle.
Key expectations under ICH Q10:
- Integrate granulation controls into routine operations and CPV.
- Manage changes systematically (e.g., new excipient grade or scale-up).
- Ensure deviations (e.g., granule PSD shifts) lead to documented investigation and CAPA.
EudraLex Annex 15
EU GMP Annex 15 (Qualification and Validation) establishes clear requirements for the qualification and validation of equipment and processes. Granulation equipment such as high-shear mixers, fluid-bed dryers, or roller compactors must undergo full qualification. The process itself requires validation through PPQ to demonstrate reproducibility at commercial scale.
Key expectations under Annex 15:
- Perform IQ/OQ/PQ for all granulation equipment.
- Define and validate proven acceptable ranges for CPPs such as spray rate, drying temperature, or compaction pressure.
- Conduct revalidation following major process changes (e.g., excipient substitution, scale-up).
FDA Process Validation Guidance
FDA Process Validation Guidance (2011) reframes validation as a lifecycle activity, with focus on ongoing monitoring and evidence-based control. For granulation, this means continuous tracking of parameters and outcomes to confirm the process remains in control after initial validation.
Key expectations under FDA guidance:
- Demonstrate process understanding during development and PPQ.
- Establish a robust Continued Process Verification (CPV) program for parameters like moisture, PSD, or compaction force.
- Use statistical trending to detect early signs of variability.
Frequently Asked Questions
What Is the Difference Between Roller Compaction and Slugging in Dry Granulation?
Slugging utilizes a tablet press to produce large compacts, known as “slugs,” which are subsequently milled into granules. Roller compaction, in contrast, continuously compresses powders between counter-rotating rollers to form ribbons or sheets.
Roller compaction is preferred in modern manufacturing because it offers better process control, scalability, and lower equipment wear compared to slugging.
Can the Same Formulation Be Manufactured Using Both Wet and Dry Granulation?
In theory, many formulations can be produced by either method, but practicality depends on API properties and excipient compatibility. Wet granulation offers more flexibility for APIs with poor compressibility, whereas dry granulation is typically restricted to excipients with inherent binding properties. Regulatory filings typically justify the choice of a specific method, and switching requires revalidation.
Why Does Dry Granulation Often Lead to Lamination or Capping of Tablets?
Excessive compaction pressure can cause elastic recovery during decompression, leading to the separation of tablet layers (lamination) or the formation of caps. This issue is particularly pronounced when granules lack sufficient binding strength. Optimizing roller force and using excipients like MCC can reduce these defects.
How Does Scale-up Differ Between Wet and Dry Granulation?
Wet granulation faces challenges in achieving uniform liquid distribution and efficient drying when transitioning from pilot to commercial scale. Dry granulation, while eliminating liquid, introduces challenges in maintaining consistent feed rates and roll pressure across larger batches. Both require process modeling, DoE studies, and PAT to ensure reproducibility.
How Do Excipients Influence the Choice of Granulation Method?
Excipients determine whether wet or dry granulation is feasible. For example, hygroscopic excipients like mannitol may complicate wet granulation, while brittle fillers may fracture under roller compaction. The excipient profile must be evaluated during development to guide method selection.
Final Thoughts
Both wet and dry granulation are indispensable pharmaceutical manufacturing techniques, each offering unique benefits to different formulation needs and operational setups.
Wet granulation provides superior granule quality, flow, compressibility, and dose uniformity. It is ideal for challenging formulations, particularly those with low-dose or poorly compressible APIs. However, it requires longer processing time, more equipment, and higher energy consumption.
Dry granulation, while less suited to complex formulations, offers fast, solvent-free, and cost-effective production, especially for APIs sensitive to heat or moisture. The method simplifies regulatory compliance and supports continuous processing.
The final decision should be based on a thorough evaluation of the API’s properties, production goals, regulatory requirements, and operational infrastructure. As continuous manufacturing and real-time analytics continue to evolve, hybrid and advanced granulation systems are likely to play an increasingly important role in optimizing pharmaceutical development and production.
